LC4-DViT: Land-cover Creation for Land-cover Classification
with Deformable Vision Transformer

Kai Wang^*, Siyi Chen^*, Weicong Pang^*, Chenchen Zhang, Renjun Gao, Ziru Chen, Cheng Li^†, Dasa Gu^†, Rui Huang^†, Alexis Kai Hon Lau

HKUST · CUHK(SZ) · JHU · NUS · MUST
^*Equal contribution. ^†Corresponding authors.

Paper arXiv Code Results

Remote Sensing Image Diffusion Land-cover Classification Deformable convolution network Vision Transformer

Overview

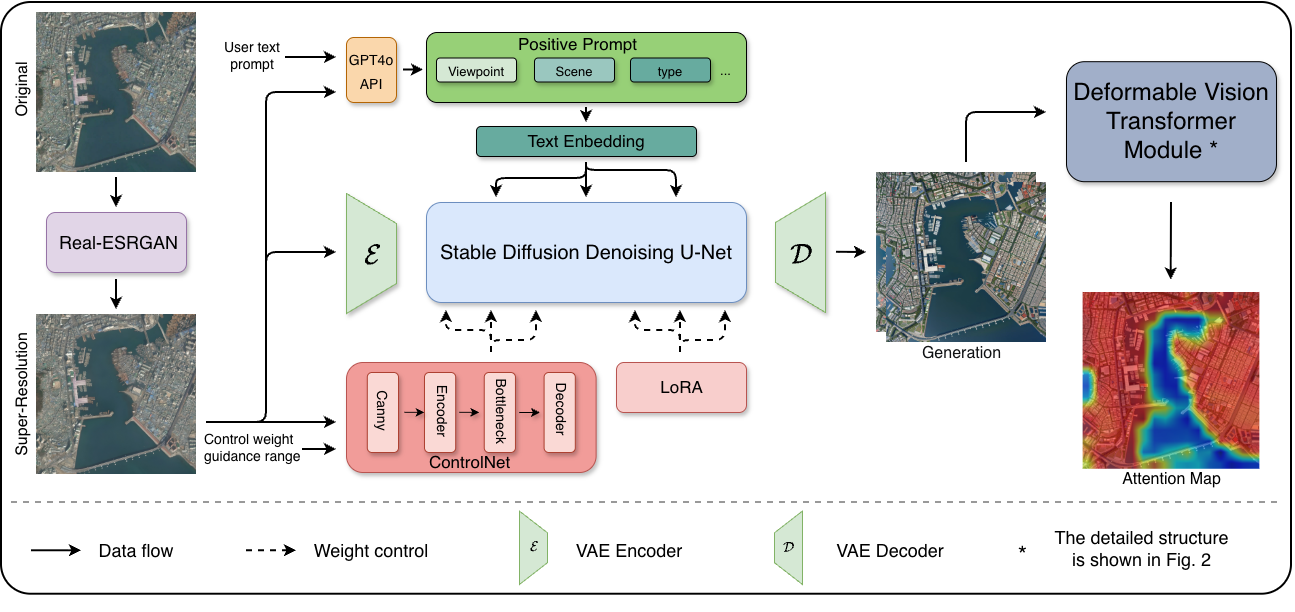

The pipeline first enhances low-resolution remote sensing images using RRDBNet within the Real-ESRGAN framework, then leverages GPT-4o-generated land-cover descriptions together with Stable Diffusion to synthesize diverse augmented samples. Finally, the proposed deformation-aware ViT (DViT) performs land-cover classification by explicitly modeling complex landform geometries, improving robustness and accuracy.

Abstract

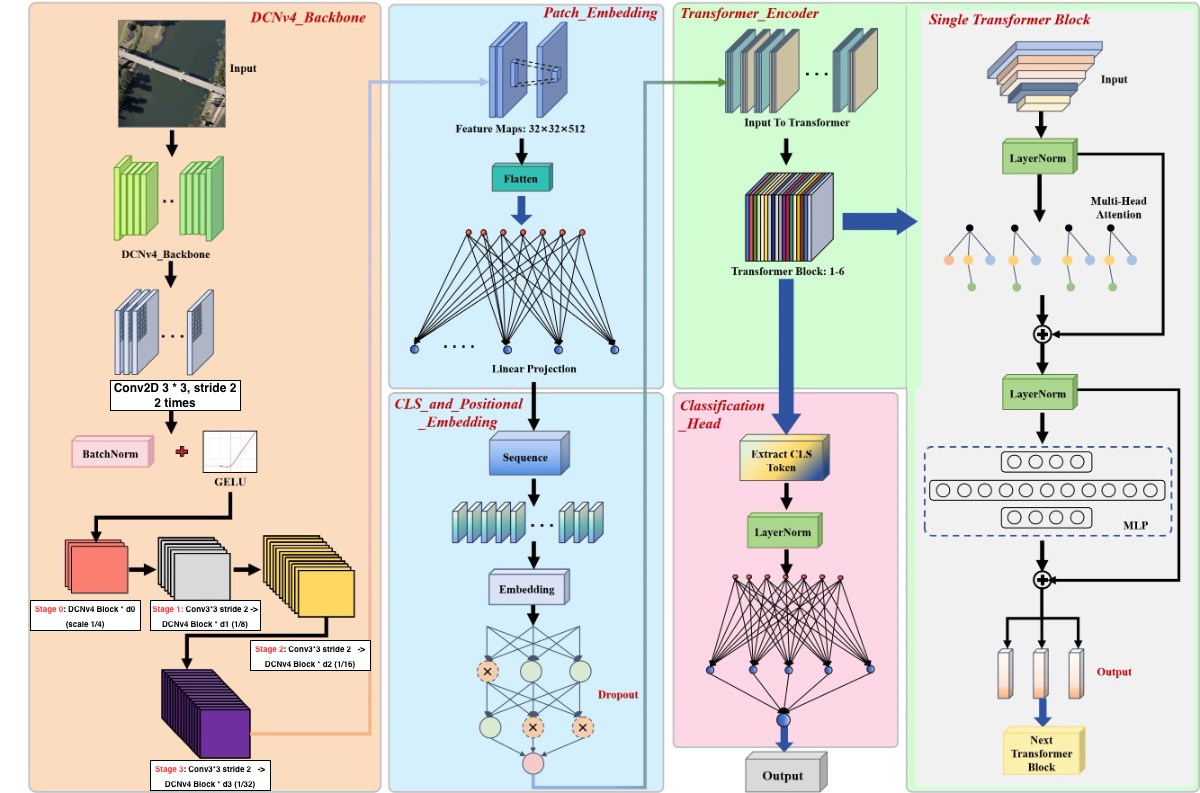

Land-cover underpins ecosystem services, hydrologic regulation, disaster-risk reduction, and evidence-based land planning; timely and accurate land-cover maps are therefore critical for environmental stewardship. Remote sensing-based land-cover classification provides a scalable route to such maps, but it is hindered by scarce and imbalanced annotations as well as geometric distortions in high-resolution scenes. We propose LC4-DViT (Land-cover Creation for Land-cover Classification with Deformable Vision Transformer), a framework that combines generative data creation with a deformation-aware Vision Transformer. A text-guided diffusion pipeline uses GPT-4o-generated scene descriptions and super-resolved exemplars to synthesize class-balanced, high-fidelity training images, while DViT couples a DCNv4 deformable convolutional backbone with a Vision Transformer encoder to jointly capture fine-scale geometry and global context. On eight classes from AID (Beach, Bridge, Desert, Forest, Mountain, Pond, Port, River), DViT achieves 0.9572 overall accuracy, 0.9576 macro F1-score, and 0.9510 Cohen’s Kappa. Cross-dataset experiments on SIRI-WHU (Harbor, Pond, River) yield 0.9333 overall accuracy, 0.9316 macro F1, and 0.8989 Kappa, indicating good transferability.

Results

Image Quality Assessment

We use KID (Kernel Inception Distance) to evaluate the quality of the generated images.

Method	Dataset	KID ↓
LVC-DViT (Ours)	AID	12.10
UniControl	CNSATMAP	20.42

Overall Performance on AID Dataset

Overall metrics comparing DViT, ResNet50, FlashInternImage, ViT, and MobileNetV2 on AID Dataset.

Model	Overall Accuracy	Mean Accuracy	Cohen-Kappa	Precision (macro)	Recall (macro)	F1-score (macro)
DViT	0.9572	0.9592	0.9510	0.9576	0.9592	0.9576
ResNet50	0.9311	0.9342	0.9211	0.9354	0.9342	0.9332
FlashInternImage	0.9404	0.9409	0.9317	0.9450	0.9409	0.9416
ViT	0.9274	0.9306	0.9169	0.9337	0.9306	0.9300
MobileNetV2	0.9348	0.9389	0.9254	0.9411	0.9389	0.9378

Per-class Performance on AID Dataset

Class	Model	Acc	Prec	F1	Kappa
Beach	DViT (Ours)	0.9306	0.9710	0.9504	0.9429
	ResNet50	0.9167	0.9706	0.9429	0.9343
	FlashInternImage	0.9306	0.9853	0.9571	0.9507
	ViT	0.9861	0.9595	0.9726	0.9683
	MobileNetV2	0.9444	0.9714	0.9577	0.9513
Bridge	DViT (Ours)	0.9242	0.9683	0.9457	0.9383
	ResNet50	0.9091	0.7692	0.8333	0.8077
	FlashInternImage	0.8182	0.9474	0.8780	0.8624
	ViT	0.9394	0.7848	0.8552	0.8328
	MobileNetV2	0.9545	0.8400	0.8936	0.8766
Desert	DViT (Ours)	1.0000	0.9524	0.9756	0.9725
	ResNet50	1.0000	0.9375	0.9677	0.9635
	FlashInternImage	0.9833	0.9672	0.9752	0.9721
	ViT	1.0000	1.0000	1.0000	1.0000
	MobileNetV2	0.9833	0.9833	0.9833	0.9812
Forest	DViT (Ours)	1.0000	0.9434	0.9709	0.9678
	ResNet50	0.9800	0.9608	0.9703	0.9672
	FlashInternImage	0.9600	0.9796	0.9697	0.9666
	ViT	0.9400	0.9592	0.9495	0.9444
	MobileNetV2	0.9800	0.9800	0.9800	0.9779
Mountain	DViT (Ours)	0.9706	0.8800	0.9231	0.9113
	ResNet50	0.9706	0.9565	0.9635	0.9582
	FlashInternImage	0.9853	0.8933	0.9371	0.9274
	ViT	0.9706	0.8684	0.9167	0.9038
	MobileNetV2	0.9853	0.8272	0.8993	0.8833
Pond	DViT (Ours)	0.9870	0.9870	0.9870	0.9848
	ResNet50	0.9221	0.9467	0.9342	0.9234
	FlashInternImage	0.9610	1.0000	0.9801	0.9769
	ViT	0.8571	0.9429	0.8980	0.8818
	MobileNetV2	0.8571	0.9851	0.9167	0.9038
Port	DViT (Ours)	0.9275	1.0000	0.9624	0.9571
	ResNet50	0.8551	0.9833	0.9147	0.9032
	FlashInternImage	0.9420	0.9420	0.9420	0.9335
	ViT	0.8986	1.0000	0.9466	0.9392
	MobileNetV2	0.9130	0.9844	0.9474	0.9399
River	DViT (Ours)	0.9333	0.9589	0.9459	0.9373
	ResNet50	0.9200	0.9583	0.9388	0.9291
	FlashInternImage	0.9467	0.8452	0.8931	0.8746
	ViT	0.8533	0.9552	0.9014	0.8864
	MobileNetV2	0.8933	0.9571	0.9241	0.9123

Normalized Confusion Matrices on AID Dataset

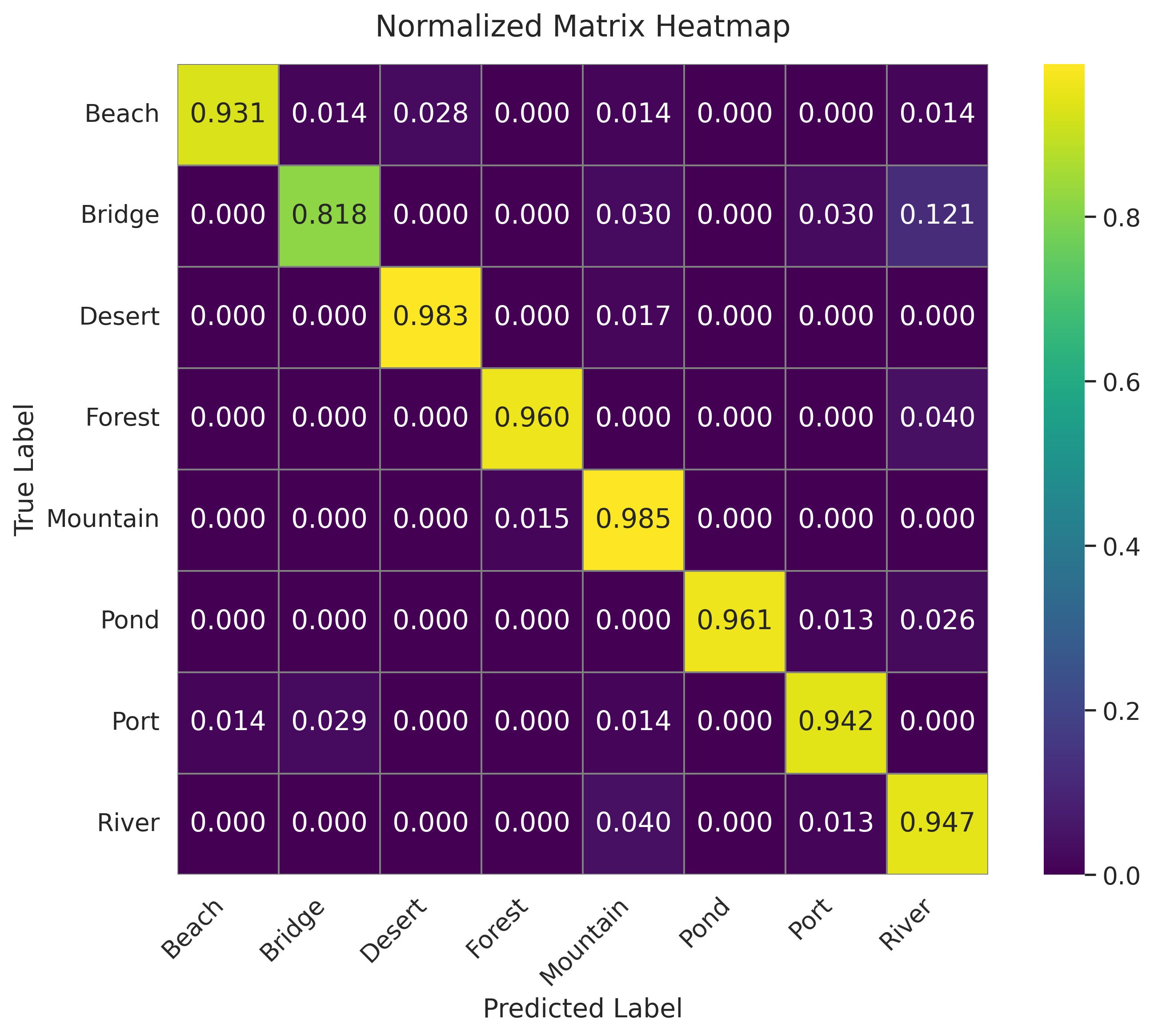

FlashInternImage normalized confusion matrix on AID

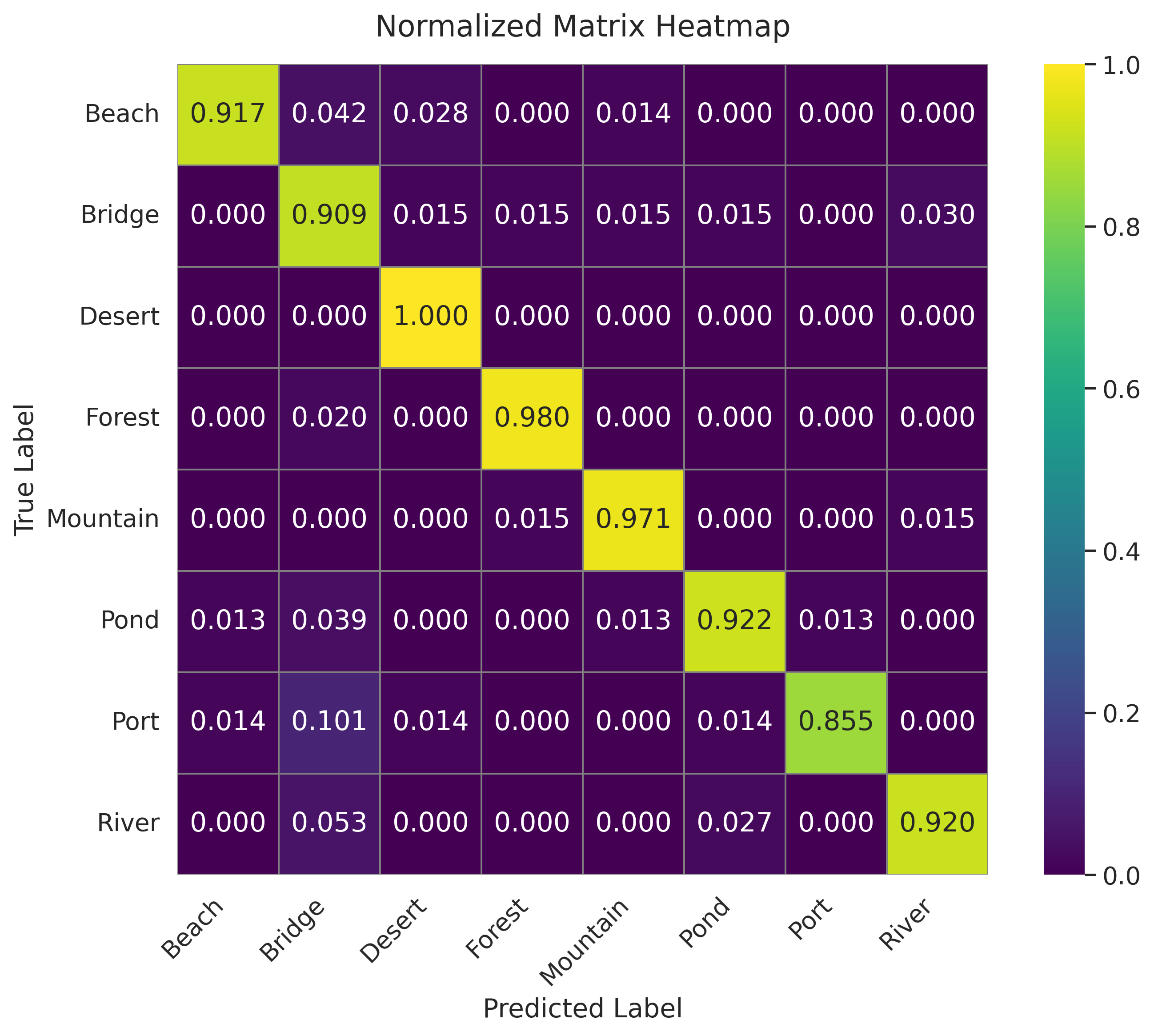

ResNet50 normalized confusion matrix on AID

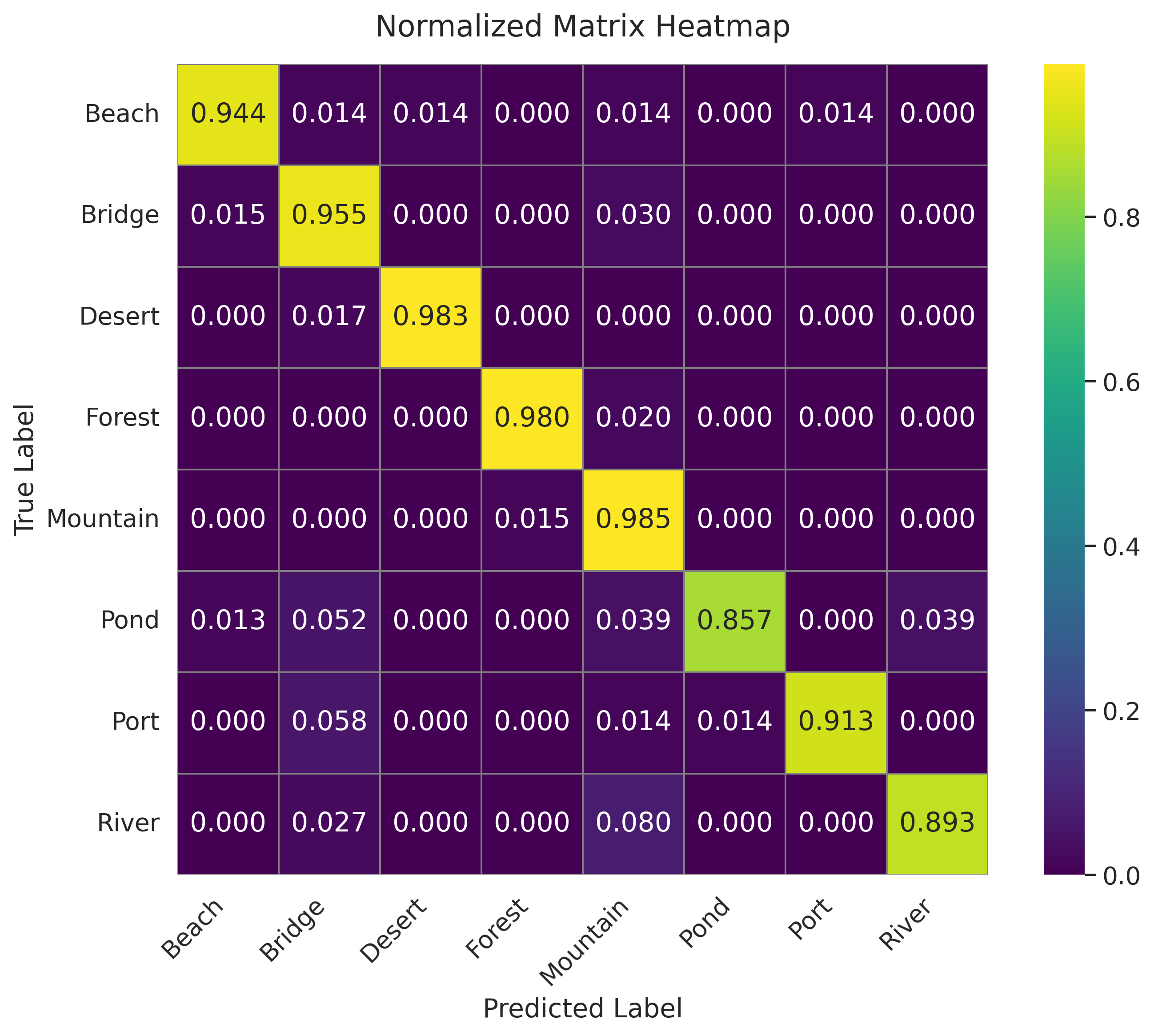

MobileNetV2 normalized confusion matrix on AID

Ablation Study (AID)

Ablation on two data-centric components: SupreR (Real-ESRGAN) and Diffusion (GPT-4o-assisted controlled diffusion).

Model	SupreR	Diffusion	Overall Accuracy	Mean Accuracy	Cohen-Kappa	Precision (macro)	Recall (macro)	F1-score (macro)
DViT			0.9162	0.9185	0.9041	0.9213	0.9185	0.9183
	✓		0.9311	0.9341	0.9211	0.9326	0.9341	0.9326
		✓	0.9367	0.9383	0.9275	0.9386	0.9383	0.9380
	✓	✓	0.9572	0.9592	0.9510	0.9576	0.9592	0.9576

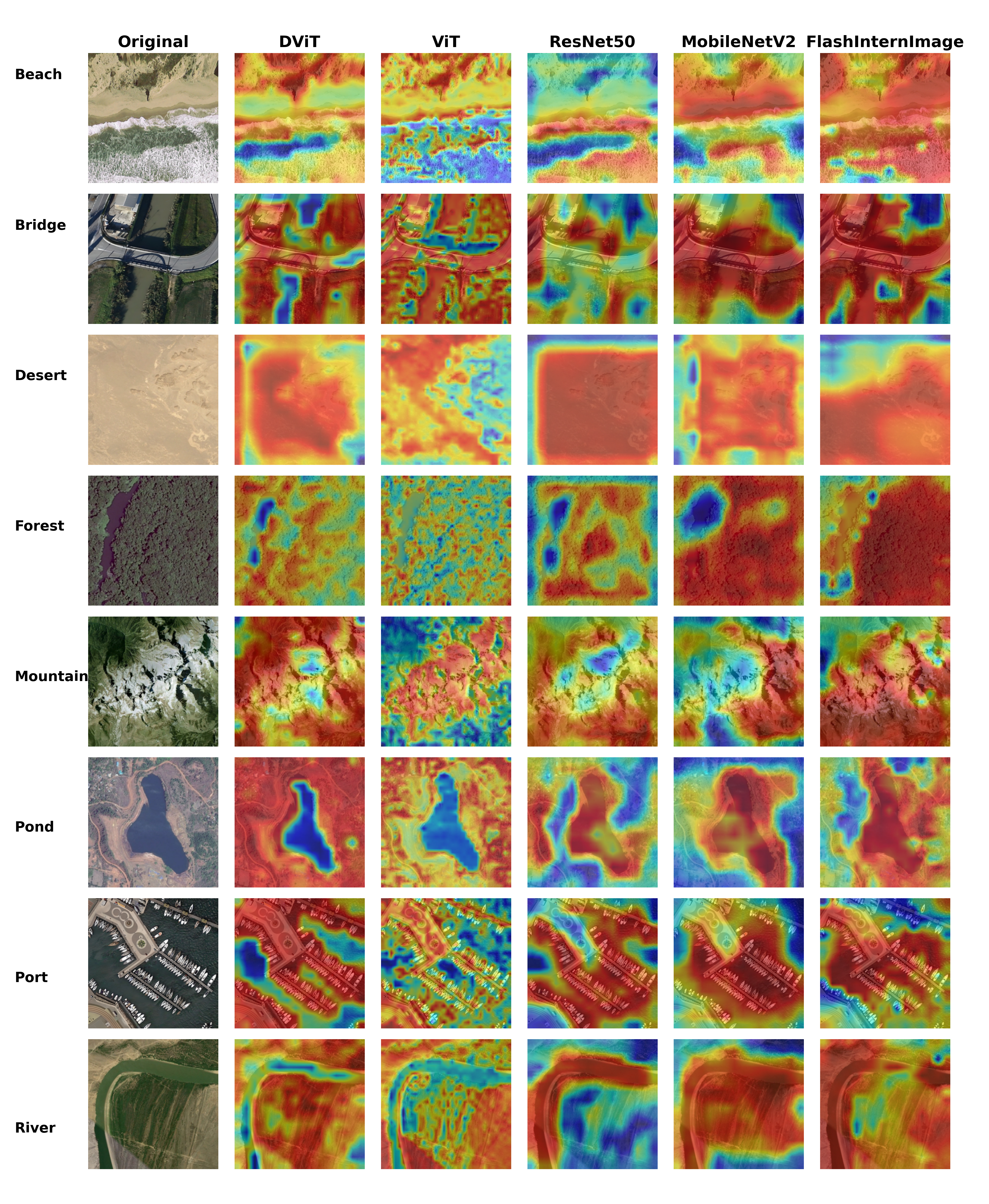

Evaluation of Model Attention via Heatmaps

Model's attention to key areas of the images

GPT-4o Judge Scores (0–3)

Model	DViT	FlashInternImage	ViT	ResNet50	MobileNetV2
Average Score	2.625	2.5	2.25	2.0	2.5

Based on the eight representative heatmaps, we further performed an LLM-based (GPT-4o) evaluation of heatmap quality. For each image-model pair, GPT-4o was prompted as an impartial judge of remote-sensing attention maps following this protocol:

Inputs: The ground-truth scene category, the original RGB image, and the corresponding attention heatmap (warmer colors = higher attention).
Evaluation Focus: Only assess the spatial alignment between high-activation regions and the semantic regions of the ground-truth class (e.g., water body, shoreline, river course, forest canopy, mountain ridge, bridge span), ignoring model architecture, training details, and any numerical scores.
Scoring Rubric: Assign an integer score s ∈ {0, 1, 2, 3}:
- 0 — Attention almost entirely on irrelevant areas; class-relevant regions largely ignored.
- 1 — Partial overlap with relevant regions, but substantial strong attention on irrelevant areas.
- 2 — Most strong attention on key class regions and structures; limited spillover to background.
- 3 — Near-perfect alignment with class-discriminative regions/boundaries; minimal unnecessary focus.
Outputs: A single discrete score and a brief natural-language explanation supporting the rating.

Cross-dataset Evaluation (SIRI-WHU)

Overall Performance on SIRI-WHU Dataset.

Model	Overall Accuracy	Mean Accuracy	Cohen-Kappa	Precision (macro)	Recall (macro)	F1-score (macro)
DViT	0.9333	0.9333	0.8989	0.9406	0.9333	0.9316
FlashInternImage	0.8667	0.8667	0.8000	0.8808	0.8667	0.8656
ViT	0.8500	0.8500	0.7750	0.8541	0.8500	0.8510
ResNet-50	0.8667	0.8667	0.8000	0.8744	0.8667	0.8628
MobileNetV2	0.8833	0.8833	0.8250	0.8952	0.8833	0.8828

Per-class Performance on SIRI-WHU Dataset.

Class	Model	Acc	Prec	F1	Kappa
Harbor	DViT (Ours)	1.0000	0.8696	0.9302	0.8916
	ResNet50	0.9500	0.8636	0.9048	0.8537
	FlashInternImage	0.8500	0.7727	0.8095	0.7073
	ViT	0.8500	0.8947	0.8718	0.8101
	MobileNetV2	0.8500	0.9444	0.8947	0.8462
Pond	DViT (Ours)	1.0000	0.9524	0.9756	0.9630
	ResNet50	0.9500	0.8261	0.8837	0.8193
	FlashInternImage	1.0000	0.8696	0.9302	0.8916
	ViT	0.8500	0.8947	0.8718	0.8101
	MobileNetV2	1.0000	0.8000	0.8889	0.8235
River	DViT (Ours)	0.8000	1.0000	0.8889	0.8421
	ResNet50	0.7000	0.9333	0.8000	0.7200
	FlashInternImage	0.7500	1.0000	0.8571	0.8000
	ViT	0.8500	0.7727	0.8095	0.7073
	MobileNetV2	0.8000	0.9412	0.8649	0.8052

BibTeX

@article{wang2025lc4,
          title={LC4-DViT: Land-cover Creation for Land-cover Classification with Deformable Vision Transformer},
          author={Wang, Kai and Chen, Siyi and Pang, Weicong and Zhang, Chenchen and Gao, Renjun and Chen, Ziru and Li, Cheng and Gu, Dasa and Huang, Rui and Lau, Alexis Kai Hon},
          journal={arXiv preprint arXiv:2511.22812},
          year={2025}
        }
